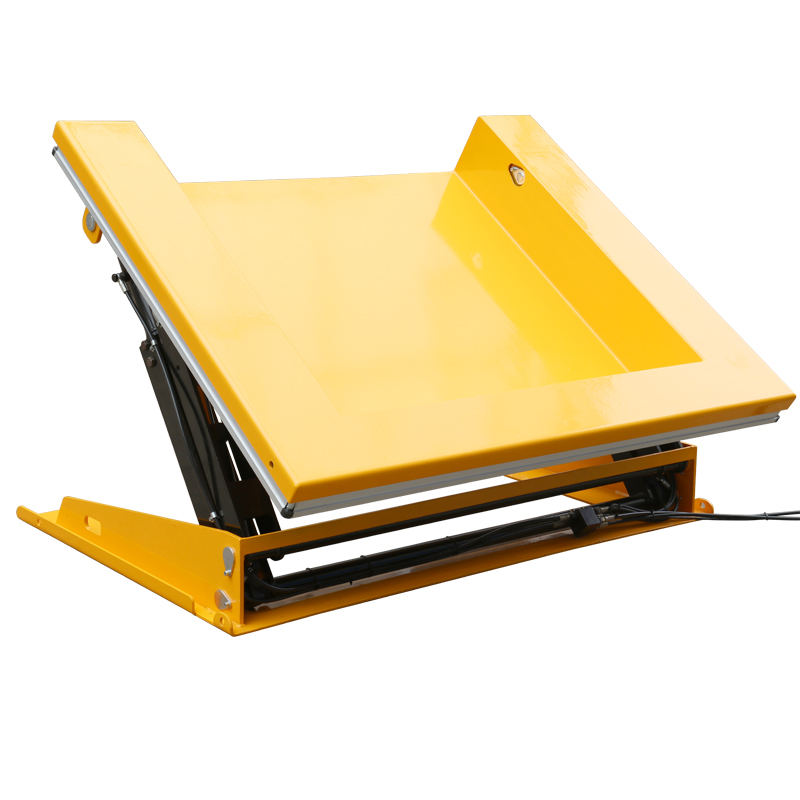

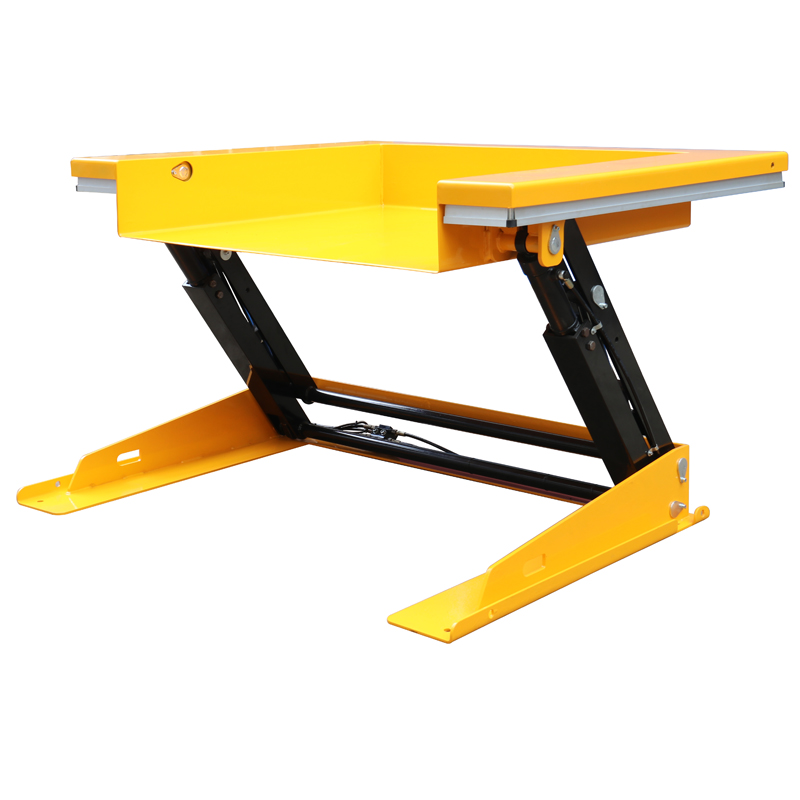

Miring Tabel Platform Cilik ALT750

  • Small platform for special size materials
  • Meet EN1570 norm and ANSI/ASME safety standard
  • Ergonomic structure design
  • One mechanism implements lifting and tilting to replace the traditional lift table
i-angkat No.13148011314802131480313148041314805
ModelALT750ALT1500ALT1500ULALT1500UMALT1500US
Kapasitaskg(lbs)750(1650)1500(3300)1500(3300)1500(3300)1500(3300)
Lowering Heightmm (inci)235(9.3)235(9.3)6(0.2)6(0.2)6(0.2)
Dhuwur Dhuwurmm (inci)820(32.3)820(32.3)820(32.3)820(32.3)820(32.3)
Platfrom Size  LxWmm (inci)1300x800(51.1x31.5)1300x800(51.1x31.5)1380x1730(54.3x68.1)1380x1510(54.3x59.4)1380x1310(54.3x51.5)
Tiltable  degree0∽-45°0∽-45°0∽-45°0∽-45°0∽-45°
Wektu Angkatsec1816161616
Daya Paket0.75kw0.75kw0.75kw0.75kw0.75kw
Bobot resikkg(lbs)300(660)355(781)440(968)410(902)390(858)
